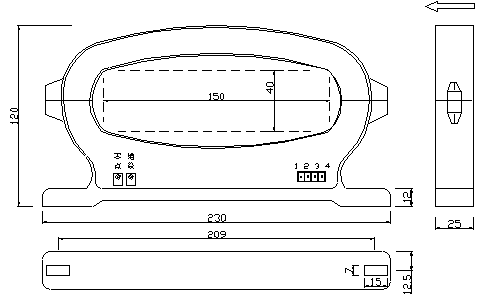

| HEC-C5 Series |
|
Publish Time：2012/7/25 | Click：1166
|
|
|
Electrical characteristics : Type | HEC800- C5 | HEC1000- C5 | HEC2000- C5 | HEC3000- C5 | HEC4000- C5 | HEC4000- C5 | HEC6000- C5 | Rated Current | 800A | 1000A | 2000A | 3000A | 4000A | 5000A | 6000A | Linear Range | 1.5 times of the maximum of measuring range | 6500A | Output Voltage | 4V 、 5V (output current 0-20mA or 4-20mA) | Accuracy | ±1% | Offset Voltage | ±20mV | Hysteresis Error | ±10mV | Temperature Drift | 0.05%/ ℃ | Response Time | ＜ 10μS di/dt=50A/μS | Power Supply | ± 12V 、± 15V （± 5% ） | Current Consumption 18mA | Isolation 3KV AC 50Hz/min | Operating Temperature Range -10 ℃ ～ +80 ℃ | Storage Temperature Range -25 ℃ ～ +85 ℃ |
|
| |
|
|
|
